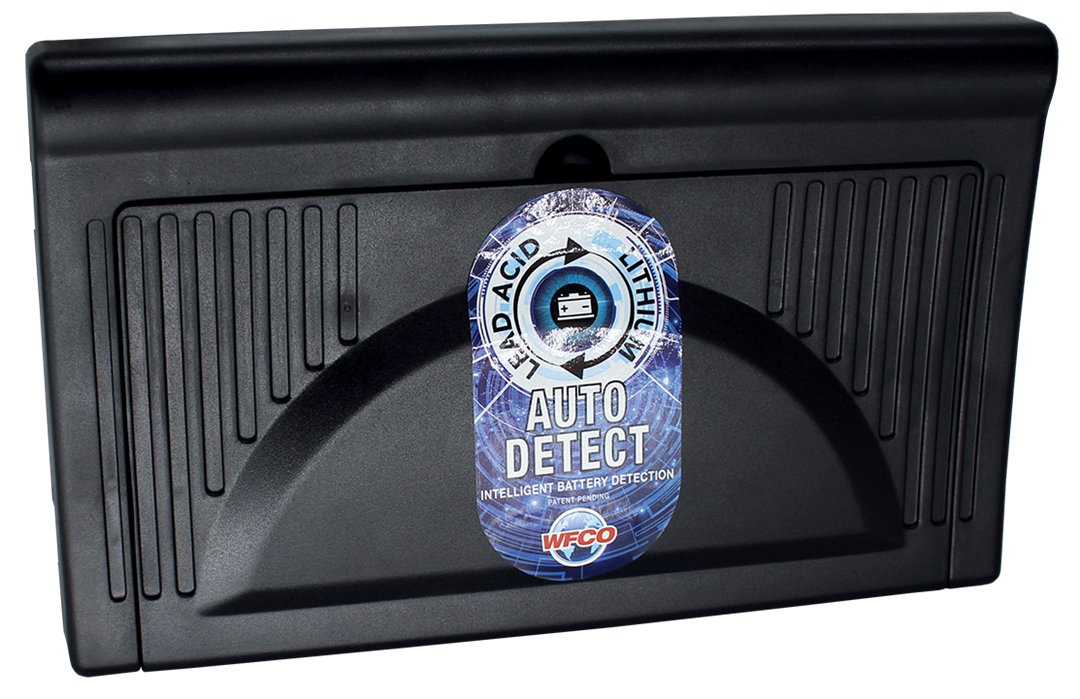

WFCO-Arterra Power Converter 8700 Series 25 Amp Part# 04-0806 WF-8725-PB
Power Converter; 8700 Series; Converts 105 To 130 Volt AC To 13.2 To 14.4 Volt DC; 340 Watts Continuous Output/ 425 Watt Peak Output; 25 Amp Rating Part# 04-0806 WF-8725-PB
SKU: 04-0806
Manufacturer part number: WF-8725-PB
UPC/GTIN: 816227010049
Power Converter; 8700 Series; Converts 105 To 130 Volt AC To 13.2 To 14.4 Volt DC; 340 Watts Continuous Output/ 425 Watt Peak Output; 25 Amp Rating; With Four 30 Amp AC Output Circuit And Four 25 Amp DC Output Circuit; Protection From Short Circuit/ Reverse Polarity/ Over Current/ Over Temperature/ Over Voltage; 10-7/16 Inch Width x 6-1/8 Inch Height x 3-3/4 Inch Depth; Black; With Battery Charger/ Distribution Center

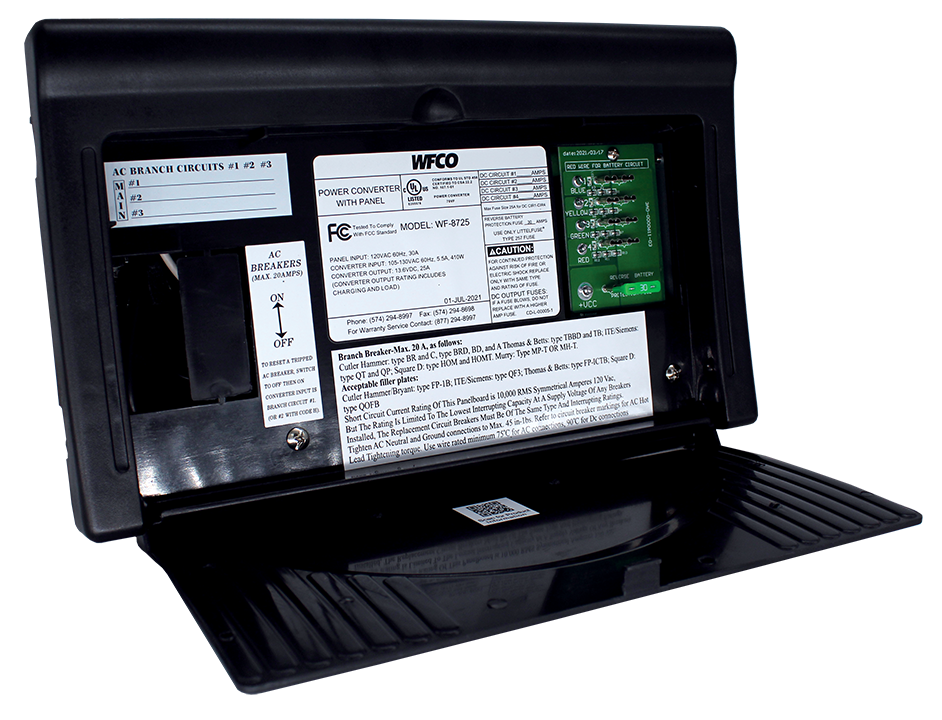

The converters provide 25 Amp DC output and a highly reliable nominal 13.6 Volt DC with or without a battery. No extra filtering is required. WFCO’s three-stage battery charging results in longer battery life and is totally automatic. Nominal voltage output modes are a 13.2 Volt DC range “float” mode, 13.6 Volt DC range “absorption” charge mode, and a 14.4 Volt DC range “bulk” charge mode. Short-circuit and reverse polarity protection provide you with further reliability and peace of mind. The cooling fan for the 8725 operates only when needed and ensures quiet operation. Every model is designed to comply with FCC Class B, which means that the converters do not cause interference with televisions, radios or other signals. The 8700 Series also brings you the convenience of built-in AC and DC distribution. 30 Amp main AC breaker and a total of up to three 20 Amp branch AC circuits can be installed. Four DC circuits include LED lights that illuminate to indicate open circuits.
Converts: 105-130 Volt AC To 13.2-14.4 Volt DC
Continuous Output Power: 340 Watt
Peak Output Power: 425 Watt
Ampere Rating: 25 Amp
Efficiency: 80 Percent
Length: 3-3/4 Inch
Width: 10-7/16 Inch
Height: 6-1/8 Inch
Remote On/Off Capable: No
With USB Port: No
With Volt/Watt Meter: No
With Short Circuit: Yes
With Reverse Battery Protection: Yes
With Thermal Protection: No
With Battery Cables: No
With Built-In Charger: No
With Fuse: No
- Three-Stage Battery Charging Results In Longer Battery Life And Is Totally Automatic
- Short-Circuit And Reverse Polarity Protection Provides You Reliability
- Cooling Fan Operates Only When Needed And Ensures Quiet Operation
- Designed To Comply With FCC Class B, Which Means That The Converters Do Not Cause Interference With Televisions, Radios Or Other Signal
- The Model Also Brings You The Convenience Of Built-In AC Or DC Distribution
